Manual or timed cycles
Foot-pedal and timed-cycle modes give operators control while improving consistency compared with hand pouring or scooping.
Semi-automatic paste filling
Semi-automatic paste fillers for flexible batch production.
A practical paste filling route for growing production, trials and frequent changeovers where operators still handle containers but need controlled dosing.
Flexible batch filling
Ideal when you need accurate paste filling without committing to a full automatic line.
Semi-automatic paste fillers are a strong entry point for food producers, cosmetic manufacturers, labs, start-ups, contract packers and industrial product teams that need controlled fills with manageable operator involvement.
Typical routes include pneumatic paste fillers, benchtop paste fillers and twin-head semi-automatic systems, depending on dose size, product behaviour and how the operator will present containers.
Product behaviourViscosity, temperature, particulates, aeration, stringing, settling and whether the product changes during the day.
Fill requirementTarget fill volume, tolerance, dose range, container neck opening, headspace and whether the fill is by volume, level or weight.
Container and closureJar, bottle, tub, cartridge, pail or jerrycan dimensions, cap style, labelling area and pack stability on conveyors.
Production targetRequired bottles per minute or per hour, number of SKUs, changeover frequency, cleaning process and operator involvement.
Module-based fill ranges
Choose the cylinder or dosing range around real pack sizes, from small cosmetic pots to larger jars or tubs.
Hopper-fed filling
Paste products usually need a hopper or pump-assisted feed to keep the product available to the piston throughout the cycle.
Best-fit products
Where semi-automatic paste fillers fit best.
Honey and sauces
Sticky, viscous food products in jars, bottles and tubs.
Creams and gels
Personal-care products needing repeatable dosing and clean presentation.
Pastes and detergents
Household products where flow and foaming must be checked.
Adhesives
Industrial products where material compatibility and stringing require review.
What is a semi-automatic paste filler used for?
It is used where an operator can load containers or start cycles, but the dose itself needs to be more repeatable than hand filling. It suits small batches, product launches and flexible production.
Does a semi-automatic paste filler need compressed air?
Many piston paste fillers are pneumatic, so available air supply and pressure should be confirmed before specification.
Can a semi-automatic paste filler later feed a conveyor?
Some machines can be used beside a conveyor or upgraded into a more connected workflow, but this should be planned around footprint, operator access and changeover needs.
Verified reference configuration
Match the piston module to the working fill range and the operator cycle.

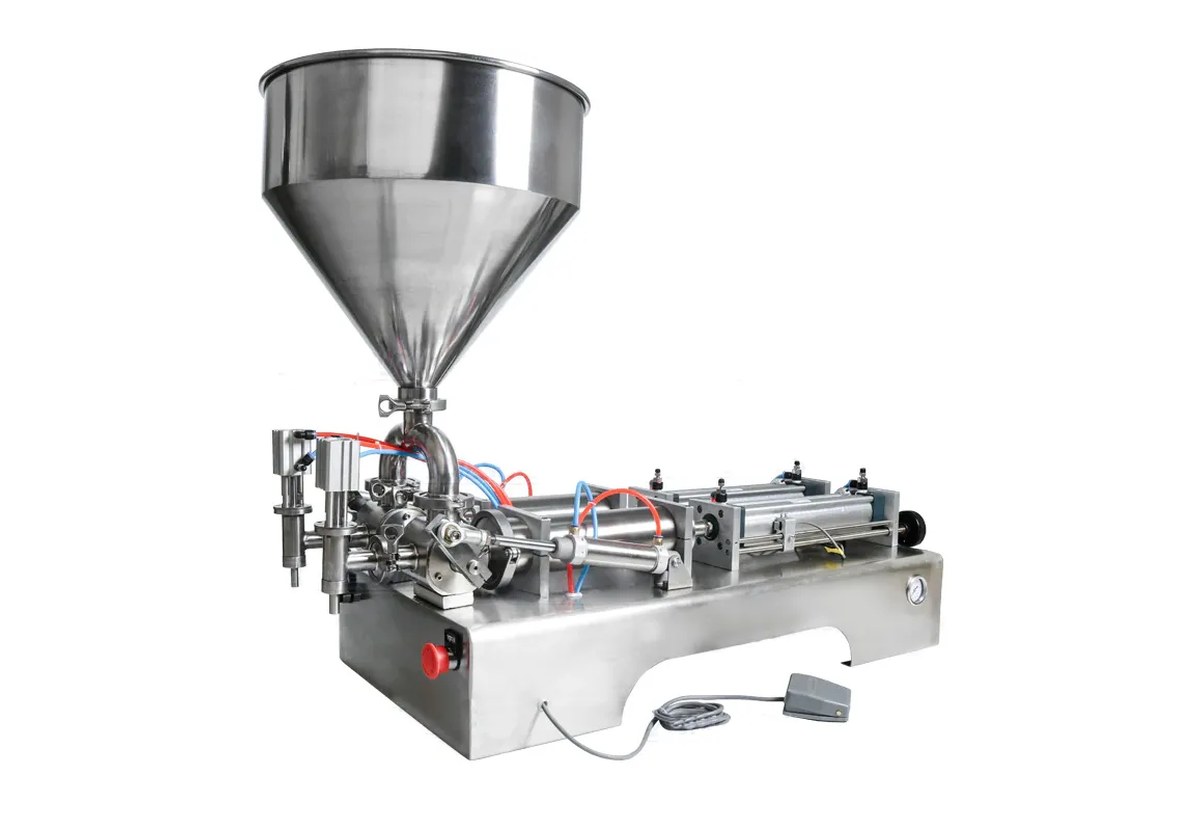

Lancing’s related Liquid Fillers range publishes a pneumatic twin-head semi-automatic paste filler with cylinder modules from 10–100 ml through to 1000–5000 ml. These are reference modules, not a claim that one cylinder covers the entire range.
Select the cylinder around real SKUs
List every production fill and identify the smallest and largest normal dose. A cylinder operating near a sensible part of its stroke is generally easier to set and verify than one forced to cover a very broad range. Confirm whether a cylinder change, valve change or recalibration is needed between products.
Measure the operator-controlled cycle
Semi-automatic output includes container placement, activation, fill time, removal, weighing or inspection and any wiping or lid placement. Test with the intended operator method and container arrangement rather than quoting only the machine’s discharge stroke.
Control hopper condition
For short batches, hopper level and product temperature can change from the first container to the last. A mixer, heated hopper or feed arrangement may help, but it must not introduce air or make cleaning disproportionate to the batch size.
Plan the next production step
Decide whether filled containers are capped, labelled or weighed immediately. Bench height, working reach, drip trays and container staging should support a repeatable operator flow. If growth is expected, retain the product and pack data for a later automatic line.
| Trial stage | Record | Reason |
|---|---|---|
| Prime and settle | Product used to fill the path, air removed and hopper condition. | Prevents early fills being mistaken for stable production. |
| Repeat dose | Sequential fill weights or volumes at the target setting. | Shows variation under a consistent operator cycle. |
| Cut-off | Drips, strings, product on the neck and the time between containers. | Confirms whether the nozzle and suck-back suit real handling. |
| Changeover | Time and tools needed to empty, strip, clean and restart. | Tests whether the equipment fits short-run production. |
Published reference: Lancing semi-automatic paste filling machine listing. Confirm the current configuration in the quotation.
Batch-production route
Choose flexibility only where the operator process remains controlled.
A semi-automatic filler can be a strong route for trials, contract packing and multiple SKUs, but consistent results still depend on a defined operator method, stable product supply and regular checks.
Small batch
Prioritise fast cleaning, low product hold-up and simple settings.
Frequent change
Document cylinder, nozzle, hopper and container changes so setup can be repeated.
Future automation
Capture product and pack data now so a later conveyorised system is specified from evidence.
Semi-automatic FAQs
Questions for flexible paste filling.
How many containers can a semi-automatic filler produce?
The useful rate must be timed with the actual operator cycle, product, dose and container. Machine stroke time alone excludes loading, removal, checks and downstream handling.
Can the same machine run very small and very large fills?
Different cylinder modules may be required. Share the complete fill range so Lancing can confirm the practical module and changeover route.
Is a foot pedal or automatic repeat cycle better?
That depends on container handling and operator safety. The trigger method should support a controlled, repeatable cycle without encouraging the operator to reach into the fill area.
How can fill consistency be checked during a batch?
Use an agreed sampling plan and measure representative containers. Record any product temperature or hopper-level changes that could explain drift.
Can a semi-automatic filler handle particles?
Potentially, if the valve, cylinder and nozzle passage suit the particle size and concentration. Confirm by testing the largest credible particles in the real product.
What makes changeover genuinely quick?
Low hold-up, accessible wetted parts, defined tools, clear settings, suitable cleaning equipment and enough space for safe removal and reassembly.
Operator-controlled production
Treat the semi-automatic filling cell as a repeatable process.
A flexible filler can only be consistent when container presentation, cycle initiation, in-process checks and downstream handling are defined. The operator method should be part of the trial rather than an assumption added after delivery.
| Cell stage | Main risk | Evidence to agree |
|---|---|---|
| Container staging | Different reach, orientation or neck position from one cycle to the next. | A repeatable bench or table arrangement using production containers, including space for empties, filled packs and rejects. |
| Cycle initiation | Foot-pedal, hand control or repeat mode encourages inconsistent timing or unsafe reaching. | The chosen trigger method demonstrated with the intended guarding and operator position, including how the cycle is stopped. |
| Container position during fill | The nozzle misses a small opening, the pack tips, or a twin-head arrangement is loaded unevenly. | Guides, supports or a locating fixture that place every container consistently without slowing the practical cycle. |
| Nozzle cut-off | Product tails while the operator removes the pack, contaminating the neck, bench or next container. | The normal time between containers, a drip tray or catch arrangement where needed, and a witnessed cut-off at production temperature. |
| In-process checking | Checks are skipped when the operator is busy, allowing drift or a setup error to continue. | A defined sample frequency, measurement method, action limit and place for weighing or inspection without disrupting safe handling. |
| Capping, labelling and packing | Filled containers queue, remain uncapped or are handled while product is still settling. | The full work sequence and the number of operators needed for the target accepted output, not only the filler stroke time. |
Scale and changeover
Know when flexibility is becoming a production bottleneck.
Semi-automatic filling remains valuable when batches are short, products change frequently or capital must be concentrated on a reliable dosing stage. The upgrade point appears when manual handling or inspection prevents the equipment from delivering the required good packs.
Keep the flexible route
Retain operator placement where batch size, container variety and cleaning frequency make a conveyorised line disproportionate. Prioritise low hold-up, accessible wetted parts and a setup record that can be repeated by different operators.
Add controlled handling
A locating fixture, small infeed table, container support, checkweigh station or organised cap-and-label bench can improve repeatability without changing the basic dosing method.
Prepare for automation
Record actual operator cycle times, fill profiles, dose checks, reject causes and pack dimensions. Those records provide the evidence needed to specify a later automatic paste filling machine.
For short runs, product recovery and restart time can matter more than a faster stroke. Witness how the hopper, cylinder, valves and nozzle are emptied; confirm which parts are removed; and repeat the first good fill after reassembly. Use the piston filler guide, anti-drip nozzle guide, cleaning and changeover guide and buyer specification guide when writing the trial plan.
Semi-automatic cell questions
Questions to settle around the operator, not only the machine.
Should a twin-head filler always run both heads together?
Only where the operator can present and remove both containers consistently and the product supply supports equal refill. Test the actual working method; unused or unevenly loaded heads can change the practical rate and checking routine.
Where should fill checks be carried out?
Provide a stable, accessible place for weighing or inspection that does not encourage the operator to bypass guarding or mix unchecked containers with accepted production.
Can the operator top up the hopper during filling?
That depends on the safe access and product-control arrangement. The process should prevent air, contamination or a sudden temperature change and should define what happens when the level reaches its minimum operating point.
What should be recorded before moving to automation?
Record product condition, real operator cycle, accepted output, fill settings, container dimensions, reject causes, cleaning time, change parts and the steps that currently require manual judgement.
Operator-cell design
Measure the complete work cycle around the semi-automatic filler.
Output depends on picking and presenting the empty container, triggering the fill, controlling the nozzle position, removing the filled pack, fitting a closure, checking weight and replenishing product. Record each activity at a sustainable pace and include the effect of changeovers and cleaning.
| Cell element | Question | Possible design response |
|---|---|---|
| Container presentation | Can the operator place the pack squarely and repeat the nozzle distance? | Guides, adjustable platform, fixture or conveyor-assisted positioning. |
| Cycle trigger | Does the operator need both hands for the pack or closure? | Foot control, sensor initiation or guarded automatic cycle where appropriate. |
| Filled-pack handling | Is the pack stable, hot, heavy or vulnerable to product on the rim? | Outfeed surface, cooling or settling space, closure station and ergonomic review. |
| Quality check | How often is fill quantity and presentation checked? | Defined sample plan, check scale location and action limits. |
Semi-automatic cell questions
Questions that define operator workload and changeover value.
Semi-automatic filling can be highly effective when the operator task is designed as part of the cycle. The right assessment includes container presentation, trigger method, capping work, cleaning and the point at which manual handling becomes the bottleneck.
When does operator handling become the main output limit?
Operator handling becomes the limit when placing, removing, checking or capping containers takes longer than the dosing cycle, or when fatigue increases misalignment and rework. Time the complete repeatable work sequence, including replenishment and rejected packs, rather than quoting only the filler stroke time.
Can one operator fill and cap at the same time?
Sometimes, provided the fill cycle, container stability, cap presentation and quality checks leave a safe and repeatable work window. Test the actual sequence over a representative run. If filled containers wait uncapped, include contamination, settling and spillage risks in the cell design.
What makes a semi-automatic filler suitable for frequent product changes?
A short, accessible wetted path, removable product-contact parts, clear settings, practical product recovery and a repeatable restart method are more important than headline speed. Group products into compatible changeover families and prove the hardest clean and the widest dose change before assuming flexibility.
When should a semi-automatic filling cell be upgraded to an inline system?
Upgrade when sustained demand, operator workload, pack handling or downstream tasks cannot be met reliably with the existing cell, not simply because one product run is busy. Compare accepted packs per labour hour, changeover frequency, reject causes, available space and the cost of integrating capping, labelling and accumulation.
Compare manual, semi-automatic and automatic routes and assess whether one filler can cover the required SKU families.
Need to design a practical operator cell?
Send a short video of the current method, the container and closure sequence, batch size and changeover pattern so the full operator cycle can be reviewed.
Reference configurations
Questions buyers ask when comparing a bench-style filler with a conveyor-assisted cell.
When is the LU-GT1 a practical starting point?
The LU-GT1 pneumatic paste filler is a practical reference where an operator can present each container and a single nozzle is compatible with the required batch size. Product refill, foot-pedal or automatic cycling, container support and the selected cylinder module still need to be proved with the real application.
When does the LU-GY1C offer a useful step up?
The LU-GY1C conveyor paste filler adds controlled container movement around a single filling head. It can reduce repeated manual placement, but it does not remove the need to assess infeed spacing, bottle detection, stability, nozzle alignment and downstream accumulation.
Does adding a conveyor make the whole process automatic?
No. A conveyor automates movement, not every production task. Product replenishment, empty-container loading, cap placement, filled-container removal, cleaning and fault recovery may still need operators unless those functions are included in the agreed line scope.
How should a published filling-accuracy figure be verified?
Use the normal product at the normal filling temperature and measure a sequential sample at the agreed target dose. Define whether the result is based on weight or volume, how tare and density are handled, and whether startup or adjustment fills are excluded. The acceptance rule should be written before testing.
Semi-automatic drive choice
Operator-fed production can use pneumatic or servo-controlled dosing for different reasons.
Compare how the operator selects the dose, changes recipes, presents containers, responds to faults and verifies first-off packs. The correct route depends on the product and workflow rather than the drive label by itself.
